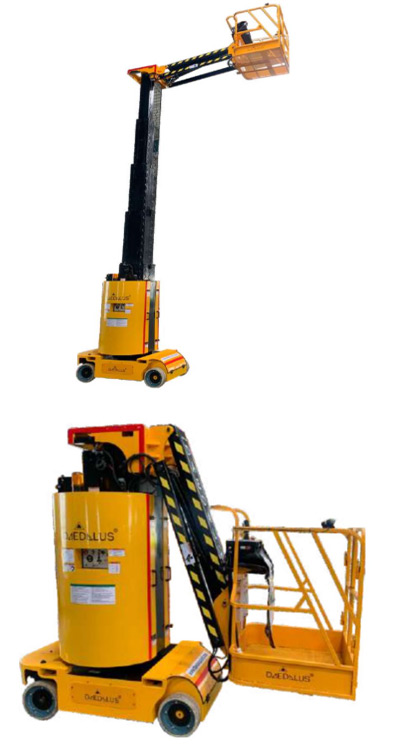

DAEDALUS Jib Master™ series of Self Propelled Vertical Mast Lifts are Compact machines providing extreme maneuverability, Precise Positioning and High Outreach to get any job done. Its design features such as Zero Tail Swing, Low Turning Radius enables you to access Narrow and Tight spaces with Ease. These capabilities along with 340° Turret Rotation enable you to reach Hard to Access work areas. These are an ideal choice of machines for congested and noise sensitive indoor environments.
| MODELS | MASTER 8 | MASTER 10 |
| Maximum Working Height | 8.0 m | 10.0 m |
| Maximum Platform Height | 6.0 m | 8.0 m |
| Maximum Horizontal Outreach | 3.0 m | 3.0 m |
| Platform Length | 0.9 m | 0.9 m |
| Platform Width | 1.0 m | 1.0 m |
| Height (Stowed) | 2.25 m | 2.4 m |
| Vehicle Dimensions (LWH) | 2.76 x 1.0 x 2.25 | 2.76 x 1.0 x 2.4 |
| Ground Clearance | 0.1 m | 0.1 m |
| Maximum Occupancy | 2 Person | 2 Person |
| Lift Capacity | 225 Kgs | 225 Kgs |
| Vertical Jib Rotation | 130° | 130° |
| Turntable Rotation | 340° Non-Continuous | 340° Non-Continuous |
| Tyres (Non-Marking Tyres) | 323 x 100 mm | 323 x 100 mm |
| Power Source | 4 x 6V 225Ah Batteries | 4 x 6V 225Ah Batteries |
| Weight | 2700 Kgs | 3000 Kgs |
